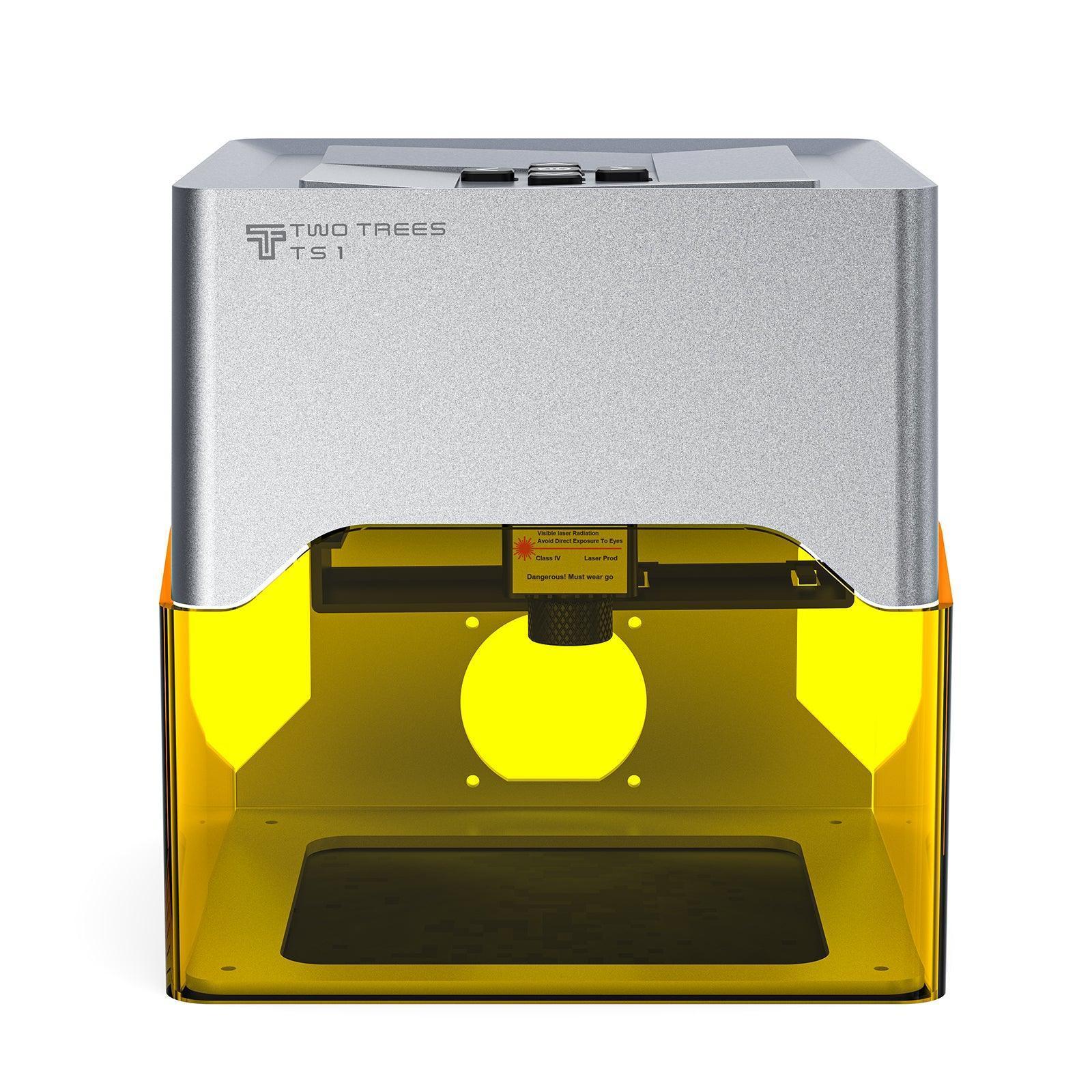

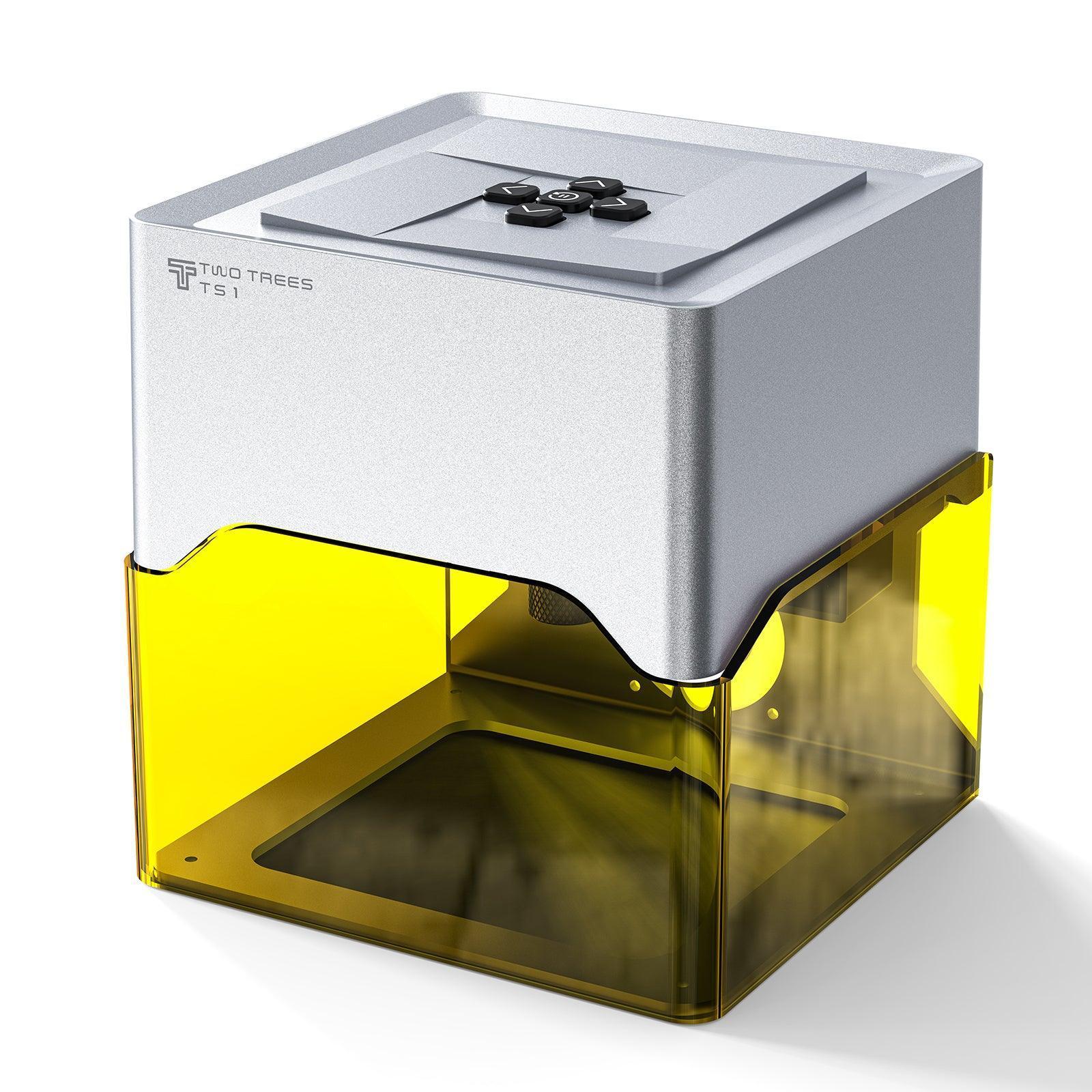

Twotrees TS1 Mini Laser Engraver Machine
Regular price
$ 149.00
Regular price
Sale price
$ 149.00
Unit price
per
Shipping calculated at checkout.
Pay with
and enjoy 4 interest-free installments.
Couldn't load pickup availability
Availability:
99 in stock
Regular price
$ 149.00
Regular price
Sale price
$ 149.00
Product Video

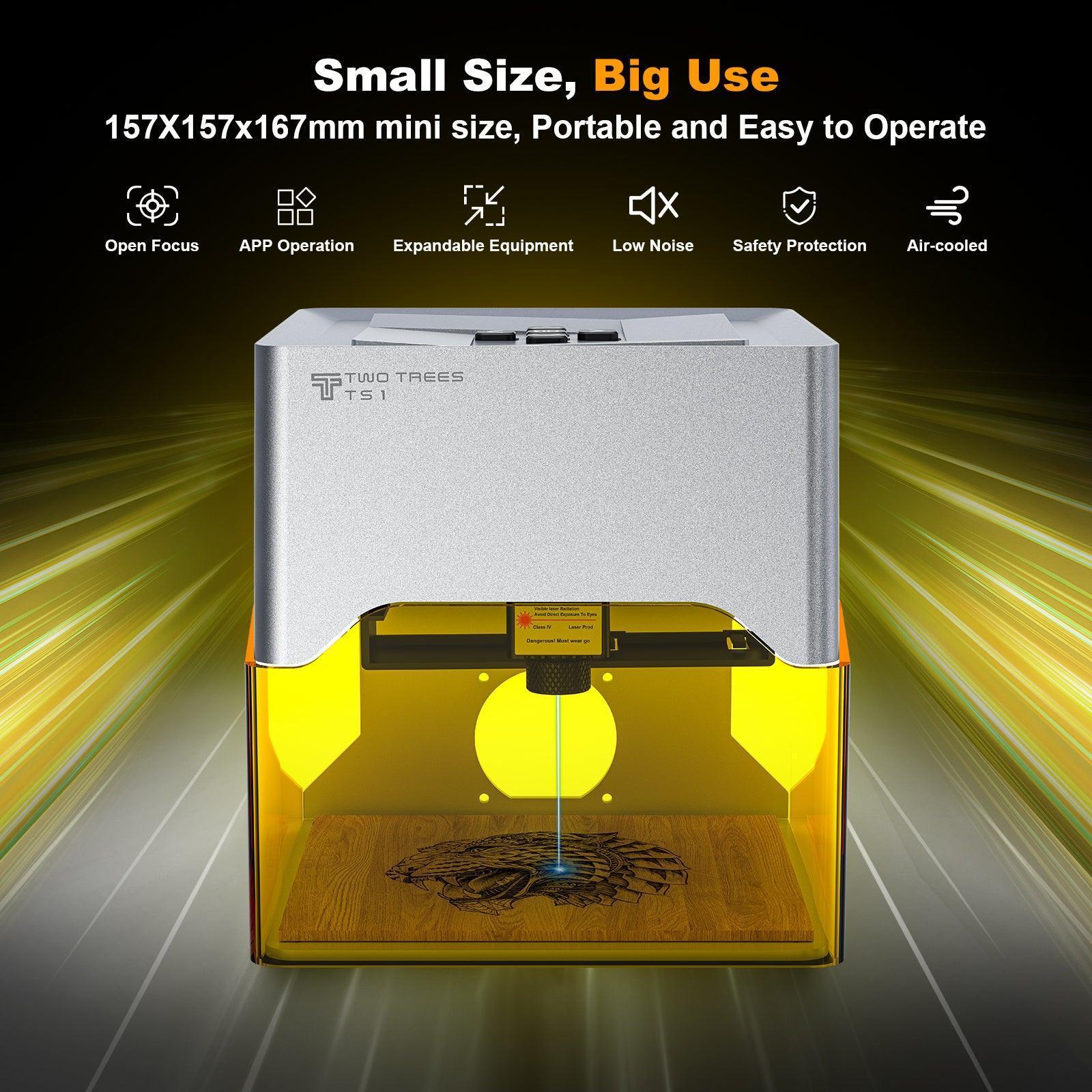

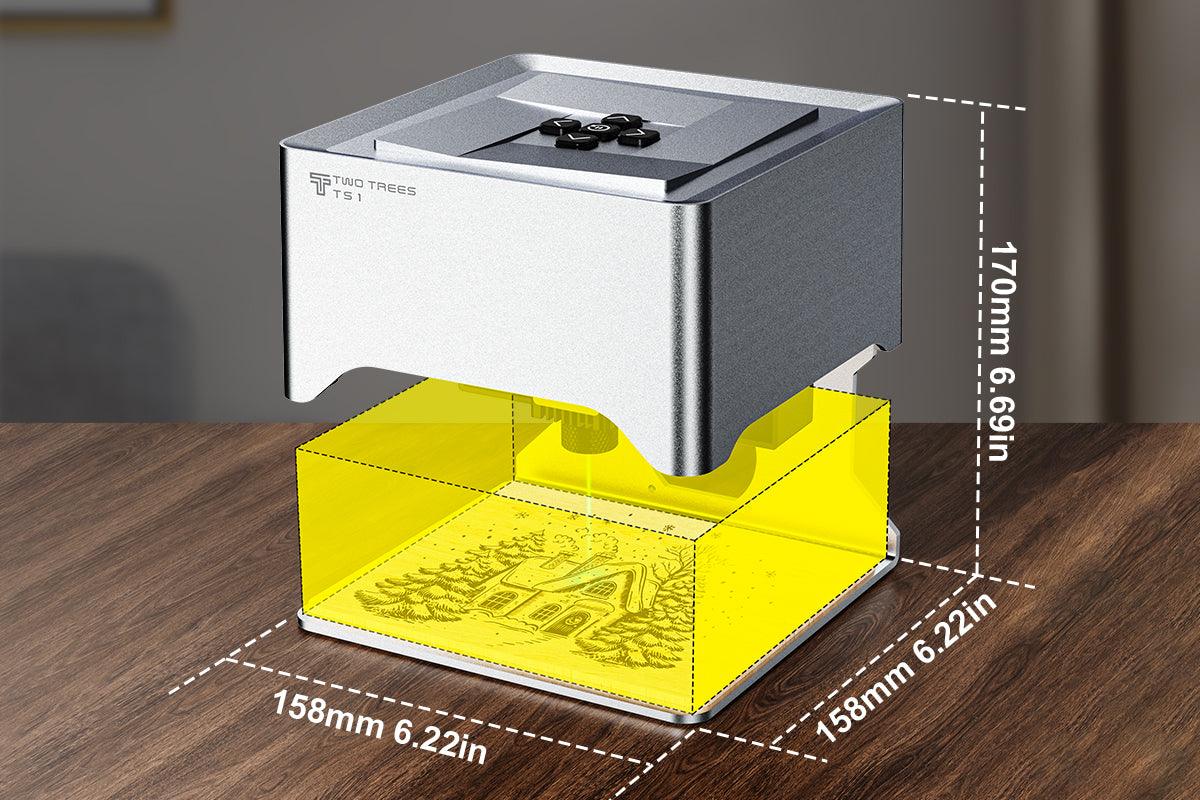

Compact Size ,Easy to Operate

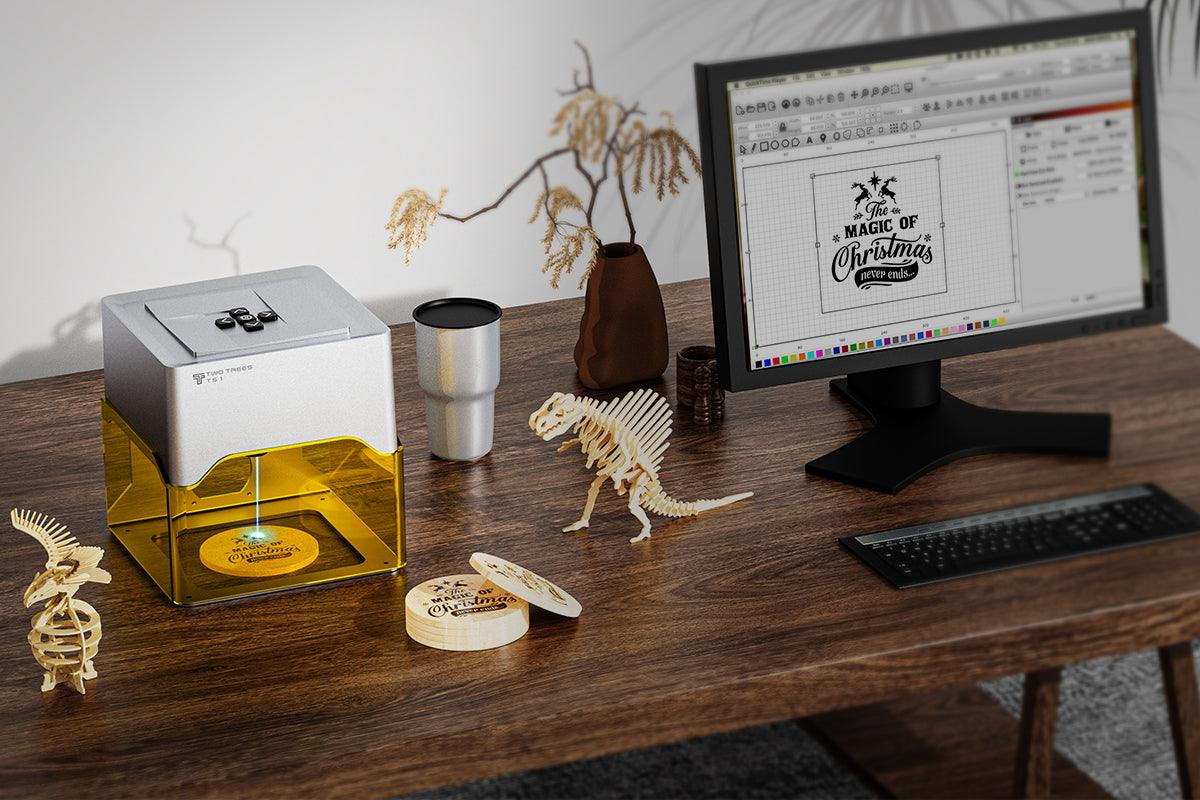

Start your creative journey anytime, anywhere.
Easy Engraving in 5 Seconds

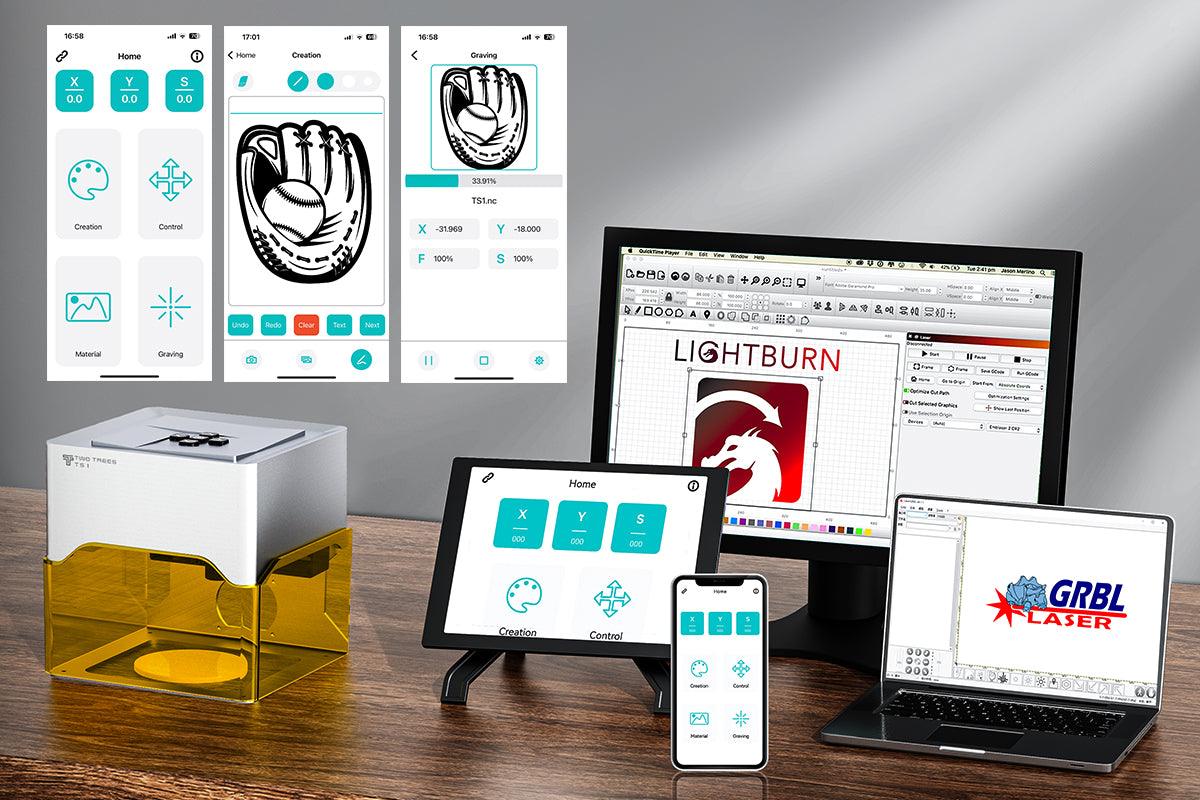

After Connected, the phone/PC selects the creationmethod and edits it and then taps send to start carving.
Professional safety protectivegoggles for your safety at all times
Complimentary pair of premiummetal aluminum plate goggles

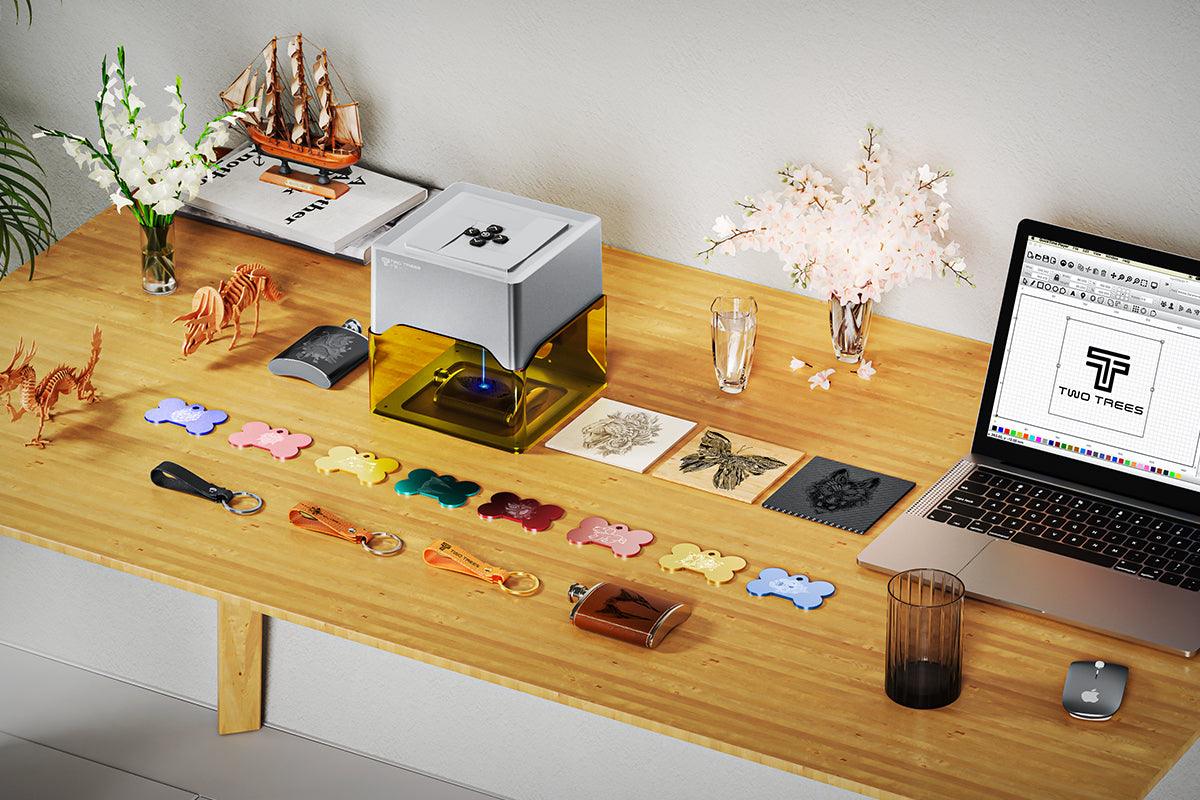

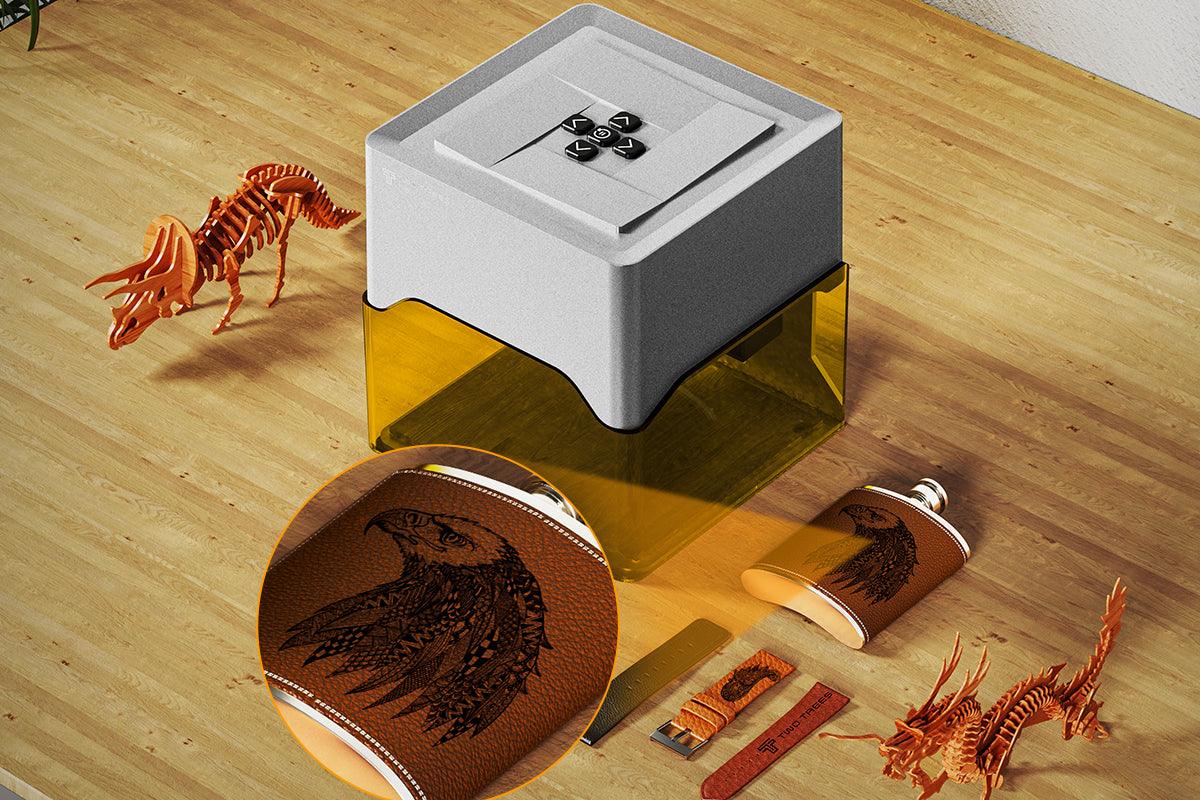

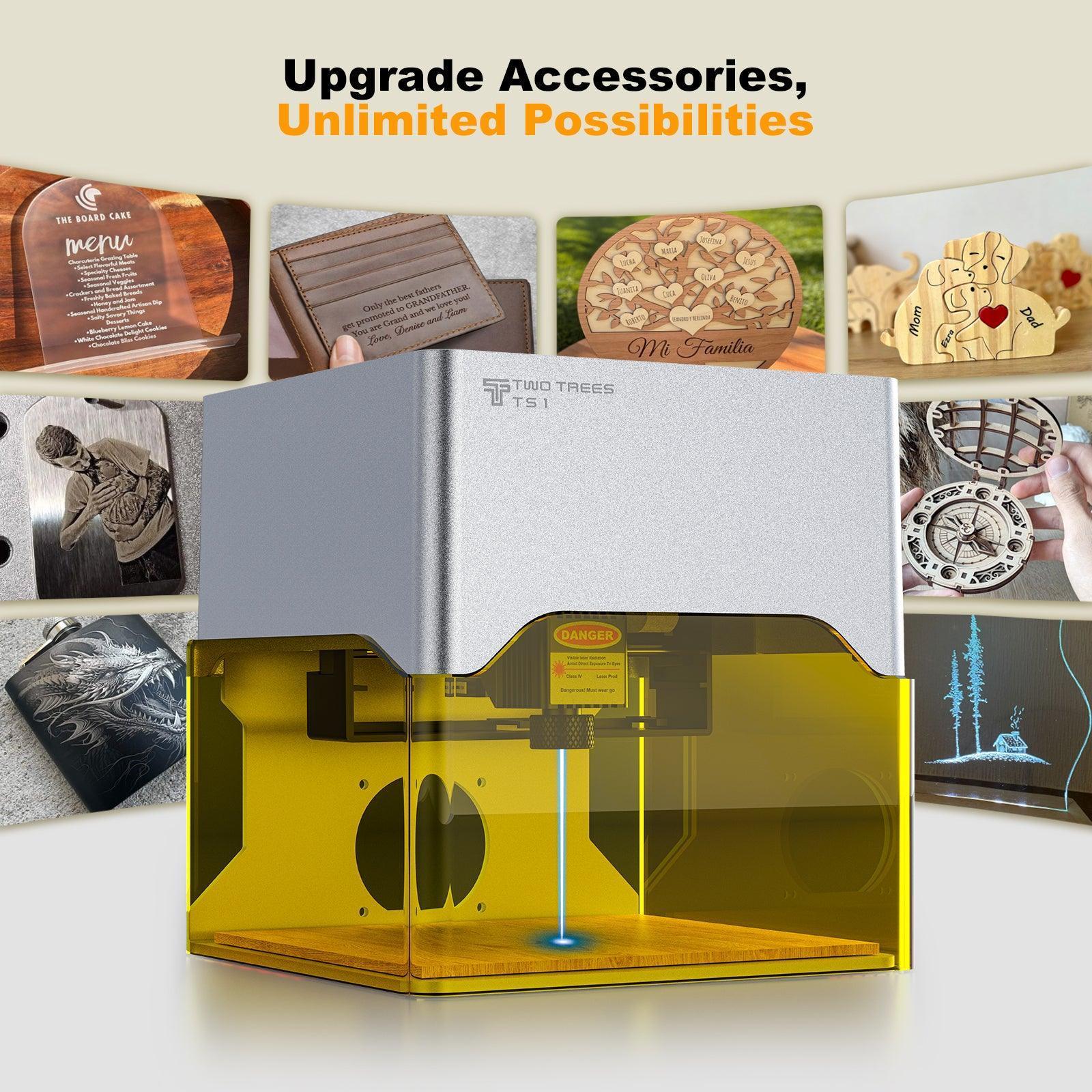

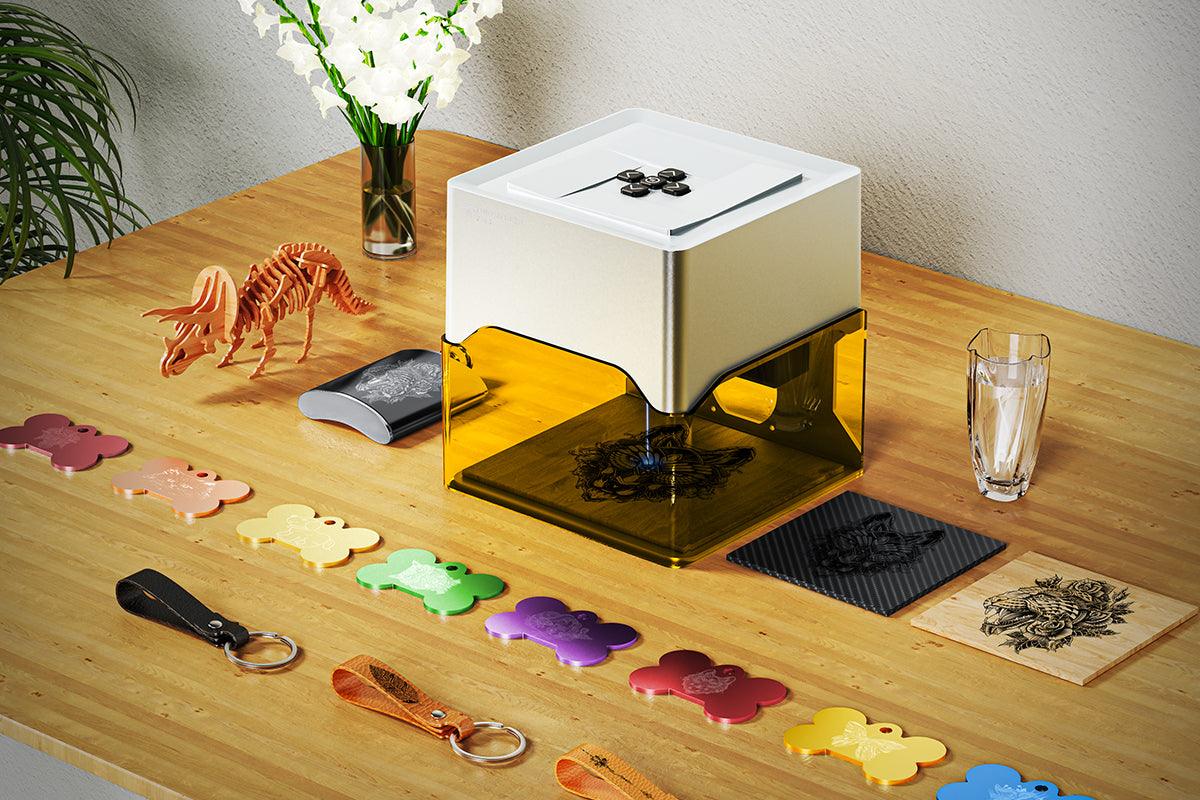

Multiple Materials,Multiple Carvings
Can be engraved wood, paper, scratch paper,kraft paper, acrylic,slate,ceramic, glass, coated metal,rubber,silicone,leather,lacquered metal,plastic, bamboo and other materials.

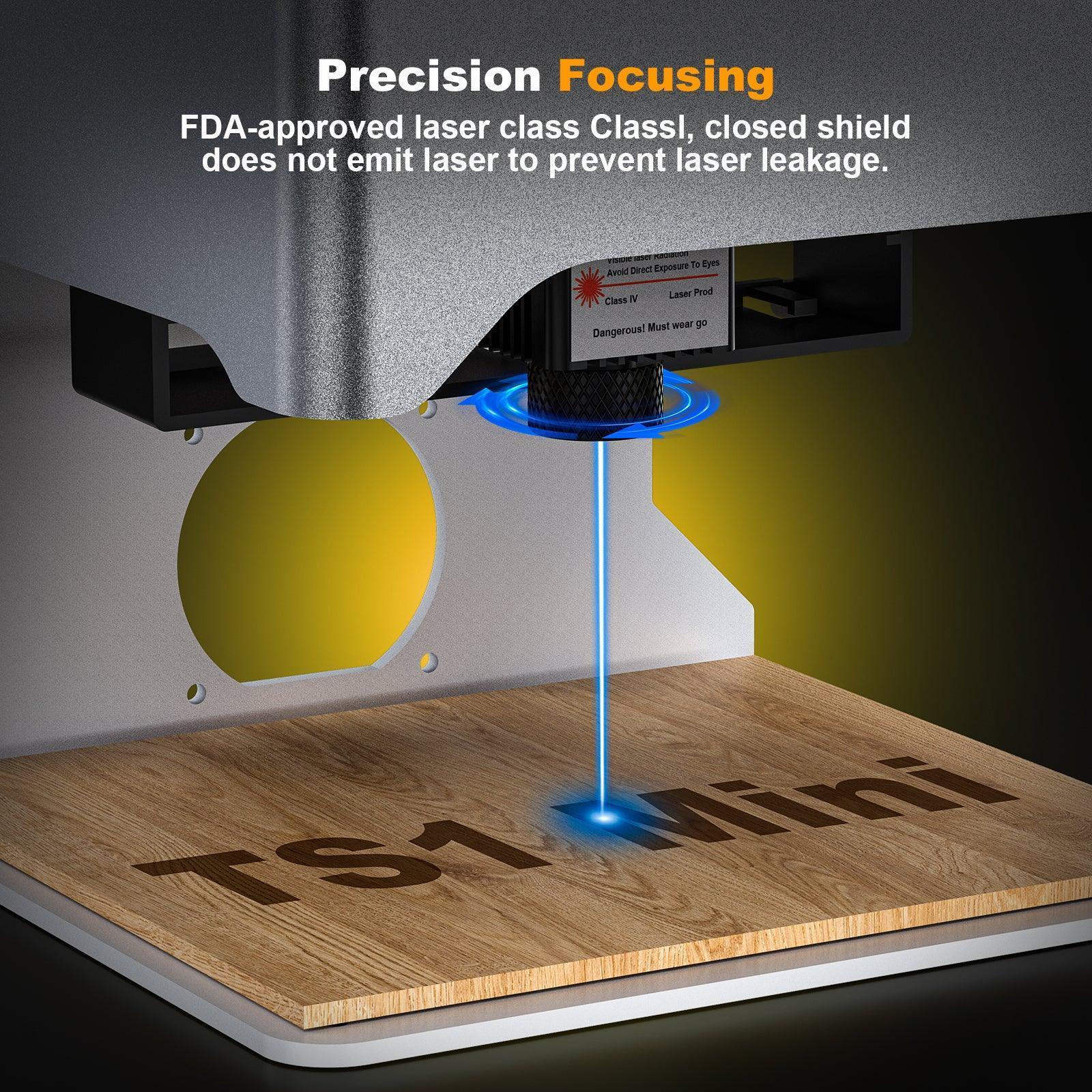

Manual focus for greateraccuracy and efficiency
Supports various module combinationsFocusing range 25-65mm, accuracy up to 0.01mm.

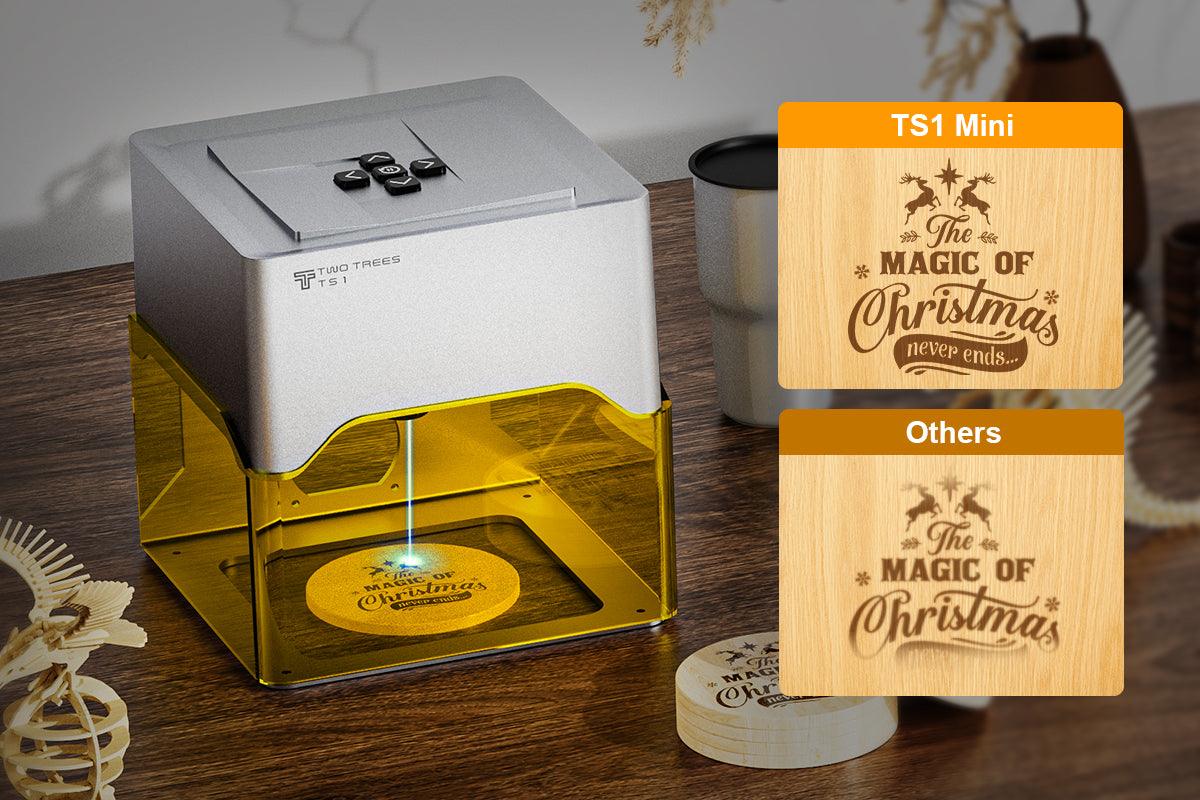

Precise attentionto every detail

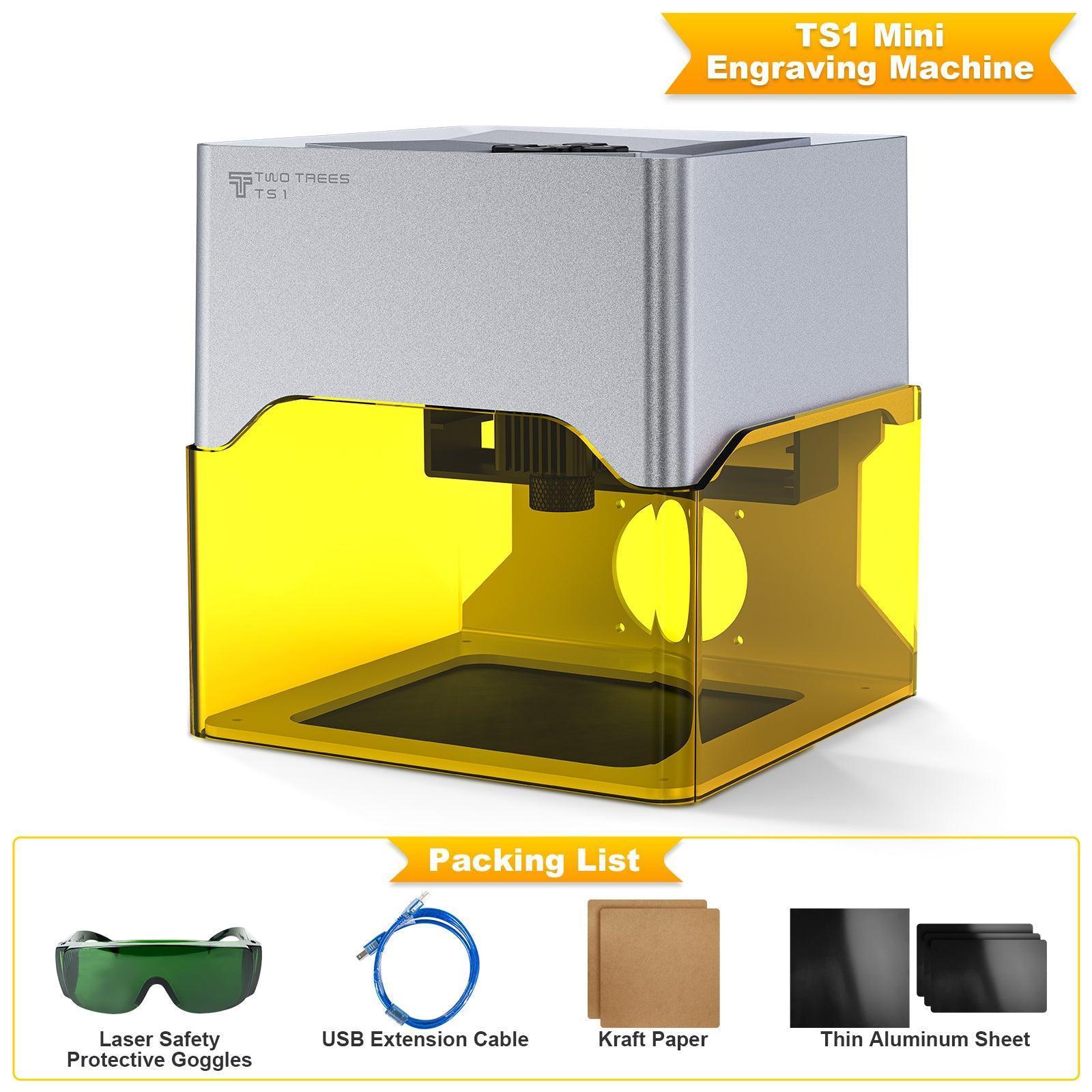

Product List
Specification
| Name | TS1mini Laser Engraving Machine | Housing Color | Silver Grey |
| Engraving Technology | Laser Etching | Housing Material | Injection Molding + Aluminum |

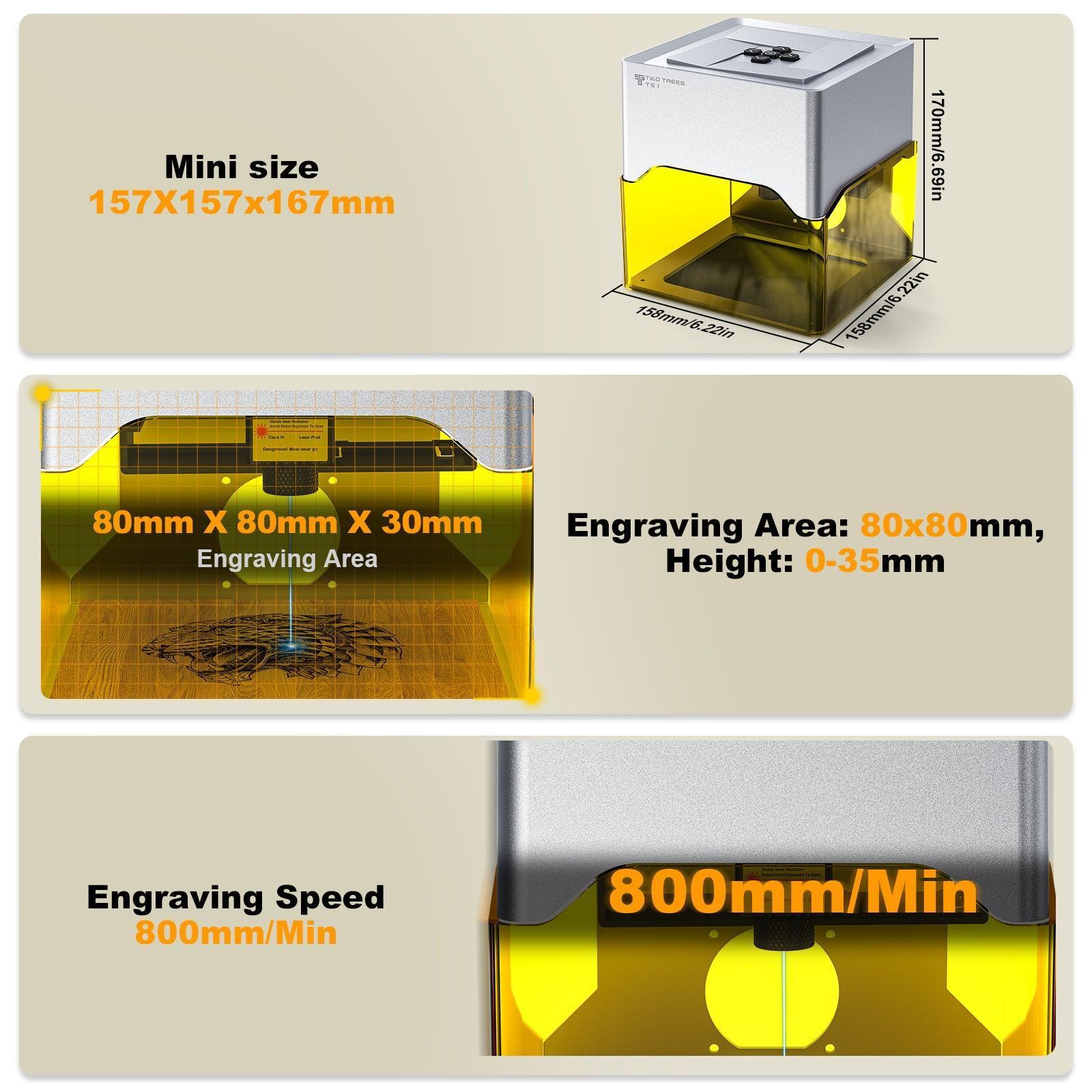

| Product Size | 157 x 157 x 167mm | Engraving Area | 80 x 80mm (Supports Object Height 0-30mm) |
| Laser Power | 3W (Actual 1.6W), Adjustable Focus Distance 2.5-6.5CM | Compatible Materials | Plywood, MDF, Solid Wood, Paper, Coated Metal, Kraft Paper, Leather, Plastic, Bamboo |
| Net Weight | Approx. 1025.7g (±100g) | Gross Weight | Approx. 1229.7g (±100g) |
| Packaging Size | 203 x 210 x 196mm | Power Supply | Integrated Adapter |
| Power Parameters | 12V/2A (USA), 12V/2A (China) | Input Voltage Control Board | 12V |
| Operating Power Consumption | 17.5W | Firmware Type | GRBL Open Source |
| XY Driver | A4988 | Bluetooth | Supported |
| TF Memory | Supported (Built-in) | USB Port | Supported |
| WiFi | Not Supported | USB Stick | Not Supported |
| Screen | None | Motion Structure Type | XY |
| XY Motor Model | SM1567A | Home Position | Top Left Corner |
| XY Axis Position Accuracy | 0.1mm | Engraving Accuracy | 0.1mm |
| Max Engraving Speed | 3000mm/min | Max Acceleration | 320mm/min |
| Compatible Software | Lightburn, LaserGRBL, MKSLaser (Mobile App) | Supported Systems | Windows, iOS |
| Software Languages | Chinese, English, Spanish, German,Italian, Japanese, Korean | ||
